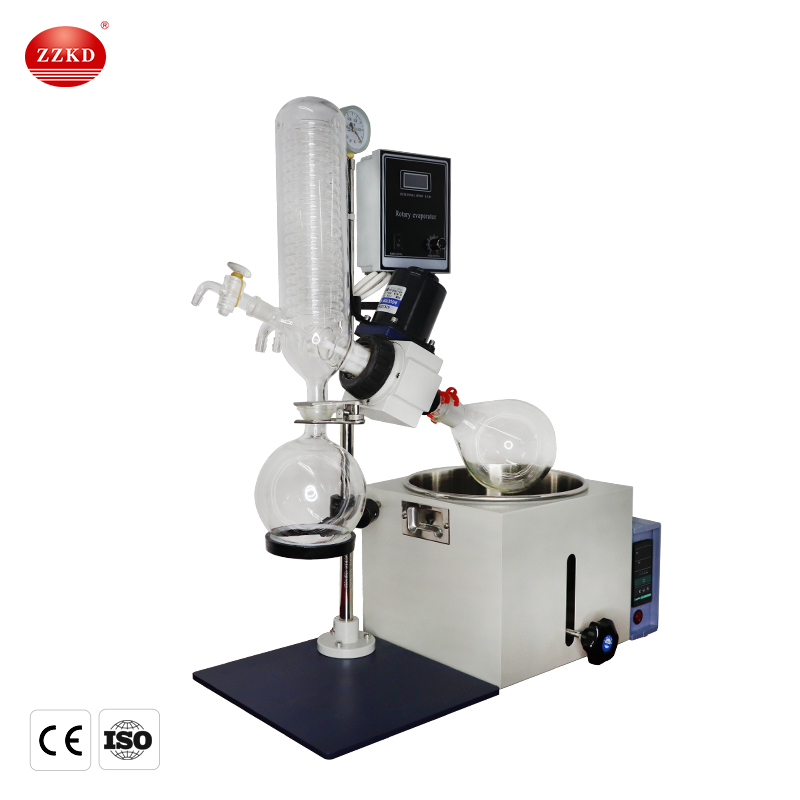

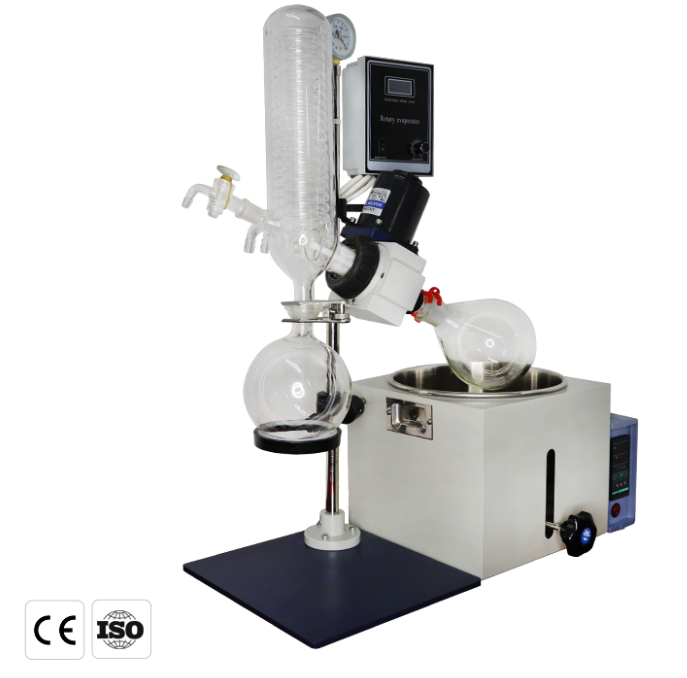

Rotary Evaporator RE-201D, 2 L
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Description
The RE-201D rotary evaporator is a laboratory device designed for efficient solvent evaporation, concentration and recovery under reduced pressure. The unit is equipped with a 2 L evaporating flask, a 1 L receiving flask and stepless speed regulation, making it suitable for routine evaporation processes in chemical, research and technical laboratories.
The device features an intelligent digital temperature control system and a water/oil bath with a wide temperature range from room temperature to 399°C. The rotary speed can be adjusted from 1 to 120 rpm, allowing the user to adapt the evaporation process to different solvents and operating conditions.
Recommended for: solvent evaporation, sample concentration, solvent recovery, laboratory synthesis, extraction processes and routine chemical laboratory work.
Technical Specifications
Model: RE-201D
Evaporating flask volume: 2 L
Receiving flask volume: 1 L
Rotating motor power: 40 W
Speed regulation: stepless speed regulation
Rotating speed: 1–120 rpm
Water/oil bath power: 1200 W
Temperature control mode: intelligent digital control
Bath temperature control range: room temperature to 399°C
Temperature resolution: ±2°C
Evaporation rate: >1 L/H₂O
Maximum vacuum degree: <133 Pa / 1.33 mbar / 1 Torr / 0.098 MPa
Lifting height: 0–150 mm
Water bath size: 24 × 15 cm
Sealing mode: PTFE and fluoro rubber sealing
Applications
Solvent evaporation under reduced pressure
Concentration of laboratory samples
Solvent recovery and purification processes
Laboratory synthesis and process development
Extraction and evaporation procedures
Research, quality control and technical laboratory work
Features
2 L evaporating flask and 1 L receiving flask
Stepless speed regulation
Adjustable rotation speed from 1 to 120 rpm
Wide bath temperature range up to 399°C
Intelligent digital temperature control
Water/oil bath suitable for higher-temperature applications
PTFE and fluoro rubber sealing system
Evaporation rate above 1 L/H₂O
Suitable for routine evaporation and concentration work
Safety and Handling
The device should be operated only by trained personnel and in accordance with the user manual. Proper glassware installation, vacuum connection and cooling circulation should be checked before use. The selected solvent, bath temperature and vacuum level should be appropriate for the process conditions. The rotary evaporator should be used in a well-ventilated laboratory area or under suitable ventilation.
Product intended for professional, laboratory and technical use only.
