Rotary Evaporator RE-1002, 10 L
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Description

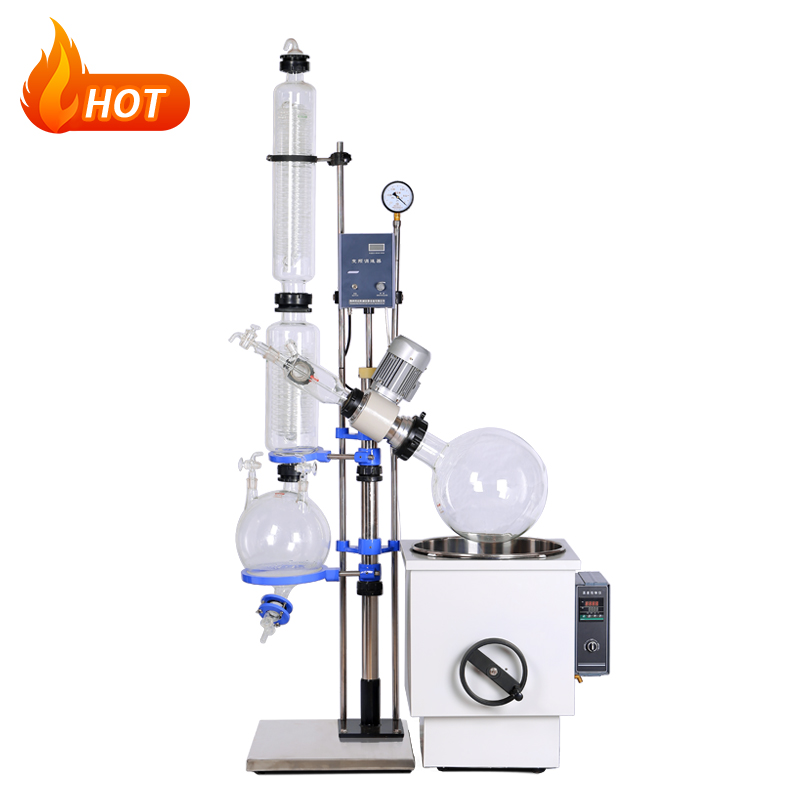

The RE-1002 rotary evaporator is a laboratory device designed for efficient solvent evaporation, concentration and recovery under reduced pressure. The unit is equipped with a 10 L evaporating flask, a 5 L receiving flask and a vertical double condenser, making it suitable for larger laboratory evaporation processes.
The device features adjustable rotation speed from 0 to 120 rpm and a water/oil bath with manual lifting. The temperature control range allows operation from room temperature up to 99°C, with an optional maximum temperature of 250°C depending on the bath configuration. The PTFE and fluoro rubber sealing system supports stable operation under vacuum conditions.
Recommended for: solvent evaporation, sample concentration, solvent recovery, laboratory synthesis, extraction processes, scale-up work and routine chemical laboratory applications.
Technical Specifications
Model: RE-1002
Evaporating flask volume: 10 L
Receiving flask volume: 5 L
Rotating motor power: 180 W
Rotating speed: 0–120 rpm
Water/oil bath power: 3000 W
Temperature control range: room temperature to 99°C, optional up to 250°C
Temperature fluctuation: ±1°C
Evaporation rate: ≥3 L/H₂O
Condenser: vertical double condenser
Lifting mode: water/oil bath manual lifting
Lifting height: 0–220 mm
Voltage: 220 V / 50 Hz
Sealing mode: PTFE and fluoro rubber sealing
Applications
Solvent evaporation under reduced pressure
Concentration of larger laboratory samples
Solvent recovery and purification processes
Laboratory synthesis and process development
Extraction and evaporation procedures
Scale-up evaporation processes
Research, quality control and technical laboratory work
Features
10 L evaporating flask and 5 L receiving flask
Adjustable rotation speed from 0 to 120 rpm
Powerful 180 W rotating motor
3000 W water/oil bath
Vertical double condenser for efficient condensation
Manual lifting system for the water/oil bath
PTFE and fluoro rubber sealing system
Evaporation rate of at least 3 L/H₂O
Suitable for larger-scale evaporation and concentration work
Safety and Handling
The device should be operated only by trained personnel and in accordance with the user manual. Proper glassware installation, vacuum connection and cooling circulation should be checked before use. The selected solvent, bath temperature and vacuum level should be appropriate for the process conditions. The rotary evaporator should be used in a well-ventilated laboratory area or under suitable ventilation.
Product intended for professional, laboratory and technical use only.
