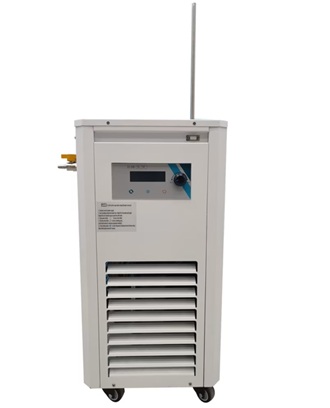

Low Temperature Heating and Cooling Circulator GDX-10/30, 10 L

Description

The GDX-10/30 heating and cooling circulator is a laboratory temperature control device designed for applications requiring stable heating or cooling of external systems. The unit combines refrigeration, heating and liquid circulation in one compact device, making it suitable for laboratory and technical applications.

Recommended for: 10 L and smaller jacketed glass reactors, laboratory condensers and external closed-loop systems requiring stable heating or cooling circulation.

The device operates in a wide temperature range from -30°C to 199°C and is equipped with a circulating pump providing a flow rate of 20 L/min. The 10 L tank capacity makes it suitable for laboratory setups requiring controlled temperature circulation and stable thermal conditions.

Technical Specifications

Model: GDX-10/30

Tank volume: 10 L

Temperature range: -30°C to 199°C

Temperature fluctuation: ±2°C

Refrigerant: R404

Cooling capacity: 275–2150 W

Heating power: 2000 W

Total power: 2900 W

Circulating pump power: 100 W

Flow rate: 20 L/min

Pump lift: 6 m

Current: 16 A

Voltage: 220 V / 50 Hz

Recommended ambient temperature: ≤25°C

Recommended ambient humidity: ≤70%

Applications

Temperature control of 10 L jacketed glass reactors

Heating and cooling of closed-loop liquid circulation systems

Use with laboratory condensers and external temperature-controlled equipment

Laboratory synthesis and process development

Research, quality control and technical laboratory work

Temperature stabilization in chemical and industrial laboratory processes

Features

Wide operating temperature range from -30°C to 199°C

Heating and cooling functions in one device

Integrated circulation pump with 20 L/min flow rate

Suitable for connection to external laboratory apparatus

10 L tank capacity for laboratory use

Stable temperature control with ±2°C fluctuation

Suitable for continuous operation in controlled laboratory conditions

Safety and Handling

The device should be operated only by trained personnel and in accordance with the user manual. The appropriate heat transfer fluid should be selected according to the required temperature range and process conditions. The unit should be used in a well-ventilated area, under the recommended ambient temperature and humidity conditions. Before connecting external equipment, all hoses and fittings should be checked for compatibility, tightness and resistance to the operating temperature.

Product intended for professional, laboratory and technical use only.
